Matplotlib Mastery: A Comprehensive Guide to Data Visualization

Introduction

An essential skill in data science and analysis is excellent data visualization. It involves more than just analyzing numbers and creating graphs; it involves creating an attracting story with the data.

Matplotlib is one of the most well-known and useful packages for building visualizations in Python. We will explore Matplotlib's capabilities, applications, customization choices, and best practices in this comprehensive guide to help you produce outstanding data visualizations.

What is Matplotlib?

Python has a powerful and popular data visualization toolkit called Matplotlib. It offers a wide range of capabilities for producing many different kinds of static, animated, and interactive visualizations.

Matplotlib enables data scientists, academics, and developers to transform unstructured data into useful graphics that are both educational and eye-catching, ranging from simple line graphs to intricate 3D plots.

It is accessible to beginners thanks to its user-friendly interface, while experienced users will find it flexible and customizable.

Why choose Matplotlib for data visualization?

Choosing Matplotlib for data visualization is like selecting a reliable and versatile Swiss army knife for your visualization needs. Here's why it's a top choice:

1. Ease of Use: Matplotlib's pyplot interface simplifies the process of creating basic plots, enabling you to create visualizations with just a few lines of code.
2. Wide Range of Plot Types: Whether you need line plots, scatter plots, histograms, or complex 3D visualizations, Matplotlib has got you covered. Its extensive plot repertoire accommodates various data types and analysis goals.
3. Customization: One size doesn't fit all when it comes to data visualization. Matplotlib offers an array of customization options, allowing you to fine-tune every aspect of your visualizations, from colors and markers to annotations and legends.
4. Publication Quality: Matplotlib is renowned for producing high-quality, publication-ready visuals suitable for research papers, presentations, and reports.
5. Integration with Data Analysis Libraries: It seamlessly integrates with libraries like NumPy and Pandas, making it easy to transform and visualize data directly from these data analysis tools.
6. Community and Documentation: Matplotlib boasts a vibrant community and extensive documentation. This means you'll find ample resources, tutorials, and examples to help you tackle challenges and learn new techniques.

Installing Matplotlib

Matplotlib is simple to install and use. To install it, follow to these steps:

Using pip:
Open your terminal or command prompt and enter the following command:

pip install matplotlib

Using conda (if using Anaconda):
If you're using Anaconda, you can install Matplotlib using the following command:

conda install matplotlib

Once installed, Matplotlib can be used for use in producing amazing visuals. Because of its simple installation procedure, you may easily and quickly get started with data visualization.

Importing Matplotlib

We must import the Matplotlib package before we can begin making beautiful visualizations. This is a simple process in Python. Just add the following sentence to the start of your script or notebook:

import matplotlib.pyplot as plt

Here, we import Matplotlib's pyplot module and alias it plt. Making later calls to Matplotlib functions in your code is made simpler by this alias.

We'll be using the pyplot package for our basic examples because it offers an easy-to-use interface for making different kinds of plots.

Using The Pyplot Interface

The Matplotlib pyplot interface offers a high-level method for producing graphs with little code. It is an excellent place to start for people who are new to data visualization because it is made to be simple to use and simple.

How to Write Your First Plot

Let's get started making your first plot with Matplotlib. To display an easy dataset, we'll start with a simple line plot. Consider that we have information on a product's sales over a period of time.

We're interested in how the sales have changed over time. Here is how to use Matplotlib to make a line plot:

# Sample data
months = ['Jan', 'Feb', 'Mar', 'Apr', 'May']
sales = [100, 150, 120, 200, 180]
# Creating a line plot
plt.plot(months, sales)
# Adding labels and title
plt.xlabel('Months')
plt.ylabel('Sales')
plt.title('Monthly Sales Performance')
# Display the plot
plt.show()

In this example, we first define the data, which includes the months along with sales amounts. Then, we make a line plot using the plt.plot() function. Then, using plt.xlabel() and plt.ylabel(), we add labels to the x-axis and y-axis, respectively. To add a title to the plot, use the plt.title() function.

In order to display the plot, we finally execute plt.show(). The plot must be displayed on the screen in order for this function to work.

Congratulations! Your first Matplotlib plot has just been made. If it might seem simple, this serves as a foundation for building complex and useful visualizations.

Exploring Fundamental Data Visualizations using Matplotlib's Basic Plots

Matplotlib provides a powerful toolbox that enables you to build a wide range of visual representations when it comes to viewing data. We'll go into some of the most basic plot types available in Matplotlib in this part, including line plots, scatter plots, bar plots, histograms, and pie charts.

These many kinds of plots can be used as building blocks to illustrate various elements of your data, such as trends, comparisons, distributions, or proportions.

Line Plots: Visualizing Trends

For displaying trends over time or across a continuous variable, line plots are a popular choice. They work particularly well for showing how one variable varies in relation to another. Think about reviewing the price changes of stocks over a period of time. A line plot could show the price variations, indicating trends and potential changes in value.

You begin by importing the library and using the pyplot interface in Matplotlib to make a line plot:


import matplotlib.pyplot as plt
# Sample data
x = [1, 2, 3, 4, 5]
y = [10, 8, 6, 4, 2]
plt.plot(x, y, marker='o')
plt.title("Line Plot Example")
plt.xlabel("X-axis")
plt.ylabel("Y-axis")
plt.show()

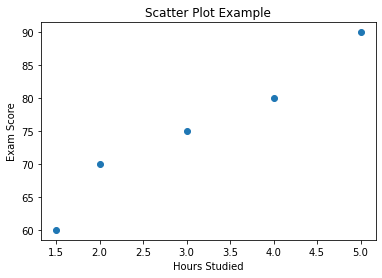

Scatter Plots: Uncovering Relationships

 For showing correlations between two numerical variables, scatter plots are excellent. They helps you in determining whether there is a correlation between variables or any outliers. A scatter plot, for instance, can be used to show how a student's study time and exam performance are related.

The process of making a scatter plot is simple:

import matplotlib.pyplot as plt
# Sample data
hours_studied = [2, 3, 1.5, 4, 5]
exam_scores = [70, 75, 60, 80, 90]
plt.scatter(hours_studied, exam_scores)
plt.title("Scatter Plot Example")
plt.xlabel("Hours Studied")
plt.ylabel("Exam Score")
plt.show()

Bar Plots: Comparing Categories

When comparing categorical data, such as sales by product, population by location, or any other situation involving different categories, bar charts are excellent tools. They provide quick comparisons and visual understanding of differences.

Think of a situation where you want to compare the revenue produced by various divisions inside a company:


import matplotlib.pyplot as plt
departments = ['Sales', 'Marketing', 'Finance', 'HR']
revenues = [150000, 120000, 90000, 80000]
plt.bar(departments, revenues)
plt.title("Bar Plot Example")
plt.xlabel("Departments")
plt.ylabel("Revenue ($)")
plt.show()

Histograms: Analyzing Data Distribution

The preferred method for displaying the distribution of a continuous quantity is a histogram. They give you insights into the central tendency and dispersion of the data by enabling you to understand the frequency of values within various ranges.

Think about a survey's age dataset as an example:


import matplotlib.pyplot as plt
ages = [25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85]
plt.hist(ages, bins=5, edgecolor='black')
plt.title("Histogram Example")
plt.xlabel("Age")
plt.ylabel("Frequency")
plt.show()

Pie charts: displaying proportions

Pie charts are a useful tool for displaying percentages or proportions within a whole. They are frequently employed to visually depict the makeup of a dataset.

Suppose you have survey information on how people pass their free time:


import matplotlib.pyplot as plt
activities = ['Reading', 'Watching TV', 'Outdoor Activities', 'Gaming']
percentages = [25, 30, 20, 25]
plt.pie(percentages, labels=activities, autopct='%1.1f%%', startangle=140)
plt.title("Pie Chart Example")
plt.axis('equal')  # Equal aspect ratio ensures that pie is drawn as a circle.
plt.show()

Customizing Visualizations

The goal of data visualization is to show information in a way that is both insightful and visually appealing. You can modify your plots with the help of the powerful Python tool Matplotlib in order to clearly convey your data insights.

We will examine the many customization options that Matplotlib provides in this part to improve your visuals.

Titles and Labels: Adding Information to Your Plots

Your plots need titles and labels to offer information, which helps users understand the visualization's message quickly. The following elements are simple to add using Matplotlib:

1. Title: To add a title to your plot, you can use the plt.title() function. A descriptive title summarizes the purpose of the plot and helps viewers grasp its main point at a glance.
2. Axis Labels: Clearly labeled axes provide vital information about the data being represented. You can label the x-axis and y-axis using plt.xlabel() and plt.ylabel() respectively. Make sure your labels are concise yet informative.

Colors, Markers, and Linestyles: Adding Visual Appeal

Your plots must be visually interesting and unique, and this is mainly achieved through the use of colors, markers, and linestyles. Matplotlib gives you the option to change these features:

1. Colors: You can choose from a wide range of colors using named colors (e.g., 'red', 'blue') or specify colors using RGB or HEX values. To set the color of a plot, use the color parameter in plot functions.
2. Markers: Markers are symbols placed at data points in scatter plots. You can use markers to differentiate between data points or add a touch of creativity. Specify markers using the marker parameter in scatter plot functions.
3. Linestyles: Linestyles determine the appearance of lines in line plots. Options include solid lines, dashed lines, and more. Set the linestyle using the linestyle parameter in plot functions.

Legends and Annotations: Explaining Your Plots

Legends and annotations provide additional information to help viewers understand your plots in-depth:

1. Legends: When you have multiple datasets in a single plot, a legend is invaluable for distinguishing between them. Matplotlib generates legends using the plt.legend() function. You can specify labels for each dataset and their location within the plot.
2. Annotations: Annotations allow you to highlight specific data points or provide additional explanations. The plt.annotate() function enables you to place text and arrows at desired positions on the plot.

Adjusting Axes and Grids: Controlling the Visual Context

Properly adjusted axes and grids enhance the readability of your plots:

1. Axes Limits: Use plt.xlim() and plt.ylim() to set limits for the x and y axes, respectively. This helps zoom in on specific data ranges and prevent misleading visualizations.
2. Grids: Gridlines aid in estimating values from the plot. You can add gridlines using plt.grid(). Adjust grid appearance with parameters like linestyle and linewidth.

Advanced Plots in Matplotlib

In the field of data visualization, a simple line or bar chart may not always be sufficient. Advanced plots play a role in this. The flexible Python module Matplotlib provides a range of advanced charting methods that can give your visuals depth and complexity.

We'll discuss 3D plots, heatmaps, box plots, and violin plots in this section and give you practical code examples to help you better understand these ideas.

Let's start now!

3D plot

With 3D plots, you may display data in three dimensions: x, y, and z, adding another dimension to your visualizations. The mplot3d toolkit, which is offered by Matplotlib, enables the development of 3D scatter plots, surface plots, and other types of plots.


import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
# Generate data
x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
X, Y = np.meshgrid(x, y)
Z = np.sin(np.sqrt(X**2 + Y**2))
# Create a 3D plot
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(X, Y, Z)
# Add labels and title
ax.set_xlabel('X Label')
ax.set_ylabel('Y Label')
ax.set_zlabel('Z Label')
ax.set_title('3D Surface Plot')
plt.show()

Heatmaps

Heatmaps are valuable for visualizing data matrices or 2D arrays. They use color gradients to represent values, making it easy to identify patterns and trends.

import numpy as np
import matplotlib.pyplot as plt
# Generate a random data matrix
data = np.random.rand(10, 10)
# Create a heatmap
plt.imshow(data, cmap='viridis')
plt.colorbar()
plt.title('Heatmap Example')
plt.show()

Box Plots

Box plots, also known as whisker plots, are excellent for visualizing the distribution of data and identifying outliers. They display key statistical measures like quartiles, median, and potential outliers.


import numpy as np
import matplotlib.pyplot as plt
# Generate random data for box plots
data = [np.random.normal(0, std, 100) for std in range(1, 4)]
# Create a box plot
plt.boxplot(data)
plt.xticks(np.arange(1, len(data) + 1), ['Std 1', 'Std 2', 'Std 3'])
plt.title('Box Plot Example')
plt.show()

Violin Plots

Violin plots combine aspects of box plots and kernel density plots, providing insights into both the distribution of the data and its probability density. They can effectively display multi-modal distributions.


import numpy as np
import matplotlib.pyplot as plt
# Generate random data for violin plots
data = [np.random.normal(0, std, 100) for std in range(1, 4)]
# Create a violin plot
plt.violinplot(data)
plt.xticks(np.arange(1, len(data) + 1), ['Std 1', 'Std 2', 'Std 3'])
plt.title('Violin Plot Example')
plt.show()

Conclusion

In Python, Matplotlib is a powerful tool for producing visually appealing and informative visualizations. It offers both beginner and experienced data scientists a wide variety of plot kinds, customization possibilities, and flexibility.

You now have a solid basis to build on as you begin your Matplotlib adventure, from basic plots to cutting-edge visualizations, enabling you to effectively communicate complicated data insights.

Keep in mind that practice is essential as you explore deeper into the field of data visualization. Try out different plot kinds, look at the customization possibilities, and take on the task of visualizing datasets from the real world.

You're well on your way to mastering the skill of transforming data into compelling visual narrative with Matplotlib as your ally.

Top 30 most used functions in Matplotlib:

• plt.plot: Create line plots to visualize data trends or relationships.
• plt.scatter: Generate scatter plots to display individual data points.
• plt.bar: Create bar plots for comparing values across categories.
• plt.hist: Produce histograms to visualize the distribution of a single variable.
• plt.pie: Generate pie charts to represent data proportions in a circle.
• plt.boxplot: Create box plots to visualize distribution, median, and outliers.
• plt.imshow: Display images or 2D data using colormap visualization.
• plt.contour: Generate contour plots to visualize 3D data on a 2D plane.
• plt.colorbar: Add a colorbar to indicate data values in visualizations.
• plt.axis: Set axis properties and limits for the plot.
• plt.title: Set the title for the plot.
• plt.xlabel and plt.ylabel: Set labels for the x-axis and y-axis.
• plt.legend: Add legends to distinguish between multiple elements in the plot.
• plt.grid: Add grid lines to the plot for better readability.
• plt.xticks and plt.yticks: Customize tick marks and labels on axes.
• plt.annotate: Add annotations with text and arrows to highlight specific points.
• plt.fill_between: Fill the area between two curves with color.
• plt.axhline and plt.axvline: Add horizontal or vertical lines to the plot.
• plt.savefig: Save the current plot to a file in various formats.
• plt.subplots: Create a grid of subplots for multiple plots in one figure.
• plt.figure: Create a new figure or modify properties of an existing one.
• plt.close: Close a figure window.
• plt.tight_layout: Automatically adjust subplots' positions and spacings.
• plt.text: Add text to the plot at specified coordinates.
• plt.errorbar: Add error bars to data points in plots.
• plt.polar: Create polar plots (radar plots) for circular data.
• plt.xkcd: Apply XKCD-style drawing to the plot for a comic look.
• plt.style: Set the overall style of the plots using predefined styles.
• plt.fill: Fill the area under a curve with color.
• plt.stem: Generate stem plots to display discrete data distribution.
